| Loading Capacity | 800-2,000 t/h dual loading/unloading |
| Boom Length | 40-52m fully extended |
| Loading Height | 12-20m maximum |
| Belt Width | 1,000-1,400mm |
| Slewing Range | 360° full slewing |
| Dust Suppression | Dry mist |
| Common Ship Types | Barge to Panamax |
| Intelligent Control | Remote control + hydraulic mode switching |
Zoomry is a global leader in the manufacture of mobile ship loaders, providing shiploader unloader conveyors for loading bulk materials onto bulk vessels. Our port loading equipment ensures unparalleled flexibility when loading barges, Handysize, Handymax, Panamax, Supramax, Capesize, and other types of vessels. Our mobile ship loaders offer efficiency from hundreds of tons to thousands of tons. Zoomry also offers customization services to meet the specific needs of different port sizes. At Zoomry, we are committed to meeting the highest expectations of our customers, which is why every mobile ship loader or shiploader unloader is fully designed and manufactured according to our customer’s specific requirements. You can acquire various types of equipment from here, such as iron ore ship loaders, Fertilizer shiploaders, wheel mobile ship loader, and more. These are suitable for handling bulk coal, fertilizer, ores (such as iron ore, copper ore, concentrate ore, bauxite), sand, gravel, aggregates, wood chips, wood pellets, cement clinker, sulfur, and other materials.
| OPERATING DIMENSIONS | ZRSL-46(m) | ZRSL-52(m) | ZRSL-58(m) | |
|---|---|---|---|---|
| Conveyor Length | A | 46 | 52 | 58 |
| Highest Extended Discharge Height | B | 16.9 | 19.1 | 21.1 |
| Lowest Extended Discharge Height | C | 4.6 | 4.9 | 5.9 |
| Highest Retracted Discharge Height | D | 8.9 | 11.8 | 12.8 |
| Lowest Retracted Discharge Height | E | 4 | 4.6 | 4.7 |
| Anchor Pivot to Center of Axle | F | 20.2 | 23.7 | 24.9 |
| Anchor Pivot to Discharge | G | 42.2 | 49 | 54.6 |
| Feed Height | H | 3.5 | 3.6 | 3.8 |
| Operating Width | 9.8 | 9.8 | 10 |
| Operating Dimensions | ZRSL-46(m) | ZRSL-52(m) | ZRSL-58(m) | |
|---|---|---|---|---|
| Undercarriage Length | A | 21 | 24.8 | 26.1 |
| Clearance (Raised) | B | 14.5 | 16.7 | 18.6 |
| Clearance (Lowered) | C | 4.6 | 4.9 | 5.9 |
| Stinger Conveyor Extension Distance | D | 18 | 19 | 24 |
| Max Height of Main Conveyor | E | 7.5 | 9.5 | 10.1 |

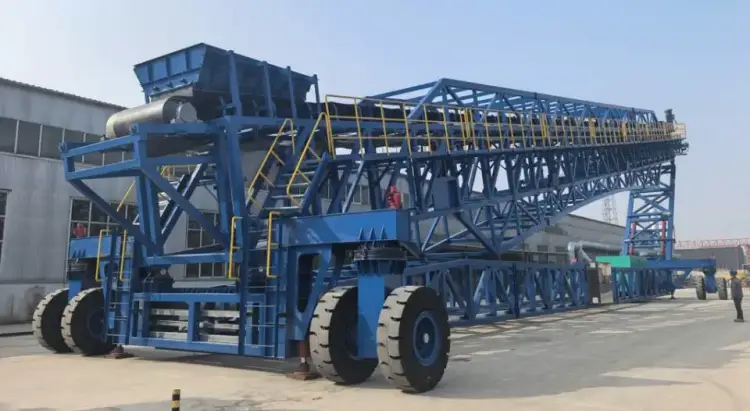

The equipment is built with heavy-duty steel structures, making it durable and robust. It can be wheel-mounted, track-mounted, or self-propelled. Engineers can remotely control it, allowing it to quickly move in and out of the quay.
With telescopic booms, adjustable luffing angles, and radial movement designs, mobile ship loaders can load bulk carriers of various sizes, from barges to capsize vessels.
Designed to handle high loading rates (up to 3500 tons per hour), ensuring fast vessel turnaround times. Our mobile ship loaders can meet your loading needs.
No need for large-scale construction or installation at existing docks. The assembly can be completed in just a few hours, and once installed, the mobile ship loader can be put into use immediately, saving significantly on infrastructure costs.
Mobile ship loaders can be rapidly deployed and set up at different locations on the quay. They support various configurations, such as inline traveling, carousel traveling, radial traveling, parallel traveling, and crab traveling.
Once assembly and commissioning are complete, operators can quickly move the mobile ship loader to the required berth. It only takes a few minutes to position the equipment for loading.
To minimize environmental impact and ensure regulatory compliance, mobile ship loaders are often equipped with dust suppression systems, such as water sprays, dust collectors, or telescopic loading chutes.
| Operating Dimensions | ZRSL-46(m) | ZRSL-52(m) | ZRSL-58(m) | |
|---|---|---|---|---|
| Maximum radial travel distance of extended conveyor at 90°Arc | A | 62.4 | 68.6 | 76.7 |
| Distance from rear of conveyor to edge of jetty | B | 29.8 | 36.6 | 39.4 |
| Distance from rear of conveyor to discharge point | C | 44 | 50 | 56 |
| Minimum radial travel distance of retracted conveyor at 90°Arc | D | 28 | 33 | 34 |
| Stinger conveyor extension distance | E | 18 | 19 | 24 |
| Total radial angle | 90° | 90° | 90° |
Image Credit: ZOOMRY Heavy Industry
Copyright: © 2026 Zoomry Group Company Limited. All rights reserved.
A: Hydraulic chute direction switch, ~30 minutes per change, no disassembly. Loading chute down, unloading chute up with grab. Simple operation by trained crew.
A: Power plant docks (coal in + ash out), chemical docks (raw material in + product out), grain terminals (import + export). One machine handles both directions.
A: 30-40% lower than separate loader + unloader, 50% less footprint. But cannot load and unload simultaneously. Suitable for medium-throughput terminals.
A: Typically 60-80% of loading capacity. Example: 2000t/h loading → 1200-1600t/h unloading, depending on material and grab efficiency.
A: Hydraulic switching system quarterly check, symmetric chute wear maintenance. Keep spare grab and chute liner. Annual hydraulic oil change recommended.
A: Yes, ideal for dock upgrades. Uses existing structure, no new fixed equipment, short retrofit period, minimal production disruption. Perfect for functionality expansion.
| # | Parameter | Specification |
|---|---|---|
| 1 | Vessel Type | Barge / Handysize / Handymax / Panamax / Capesize |
| 2 | DWT | 2,000 – 200,000 |
| 3 | Overall Length | 15 – 270 m |
| 4 | Beam | 5 – 45 m |
| 5 | Draft | 1 – 18 m |
| 6 | Air Draft | 0 – 16 m |
| 7 | Hatch Width | 5 – 25 m |
| 8 | Hatch Length | 15 – 150 m |
| 9 | Quay Height | 1 – 12 m |
| 10 | Ground Bearing Pressure | < 80 kPa (tracked) |
| 11 | Loading Capacity | 100 – 3,500 t/h |
| 12 | Boom Length | 33 – 67 m |
| 13 | Boom Reach | 62.4 – 76.7 m (radial) |
| 14 | Material Type | Coal, iron ore, grain |
| 15 | Power Supply | Diesel / Electric / Hybrid |
| Vessel Type | Overall Length (m) | Beam (m) | Draft (m) | Hatch Width (m) | Hatch Length (m) | Quay Height (m) |
|---|---|---|---|---|---|---|
| Barge | 15–130 | 5–20 | 1–5 | 5–15 | 15–100 | 1–5 |
| Handysize | 130–150 | 20–25 | 6–8 | 10–15 | 50–80 | 3–6 |
| Handymax | 150–200 | 25–32 | 8–12 | 12–18 | 60–100 | 4–8 |
| Panamax | 200–230 | 32 | 12–14 | 15–20 | 80–120 | 5–10 |
| Capesize | 230–270 | 40–45 | 14–18 | 18–25 | 100–150 | 6–12 |
| Material | Description |
|---|---|
| Coal | Thermal coal, coking coal |
| Iron Ore | Highly abrasive ore |
| Grains | Corn, soybean, wheat |
