Bucket Wheel Stacker Reclaimer

ZOOMRY bucket wheel stacker reclaimers are continuous bulk handling machines for high-capacity stacking and reclaiming operations in mines, ports, and stockyards. The bucket wheel excavates material and transfers it via the boom conveyor, enabling simultaneous stacking and reclaiming without equipment changeover.

I. How It Works
The bucket wheel rotates to excavate material from the stockpile. Material flows through internal guide chutes onto the boom belt conveyor for transfer to trucks, crushers, or conveyor systems. Hydraulic luffing controls boom elevation while PLC automation manages speed, start/stop, and fault monitoring.

II. Configurations

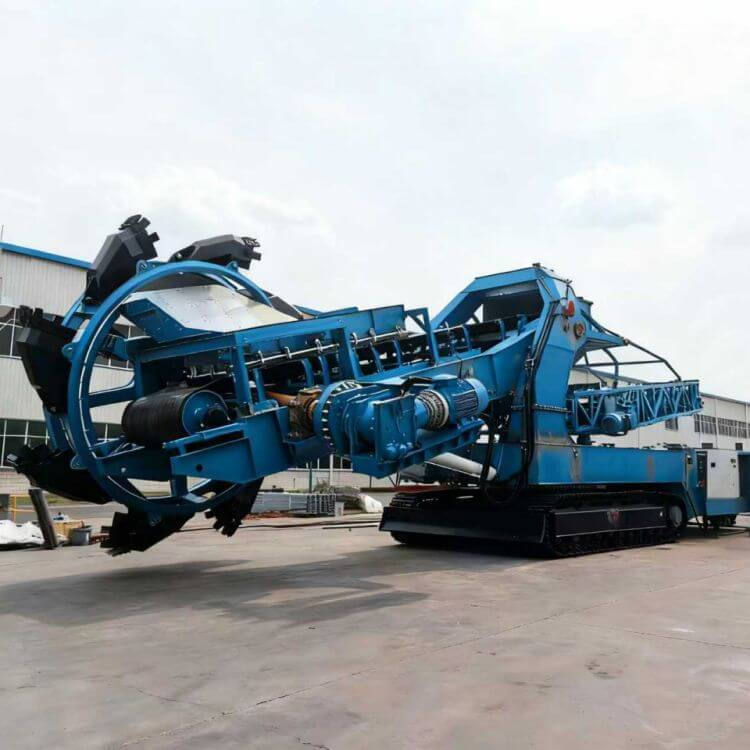

1. Bucket wheel stacker reclaimer — fixed or rail-mounted, ±65–360° slewing

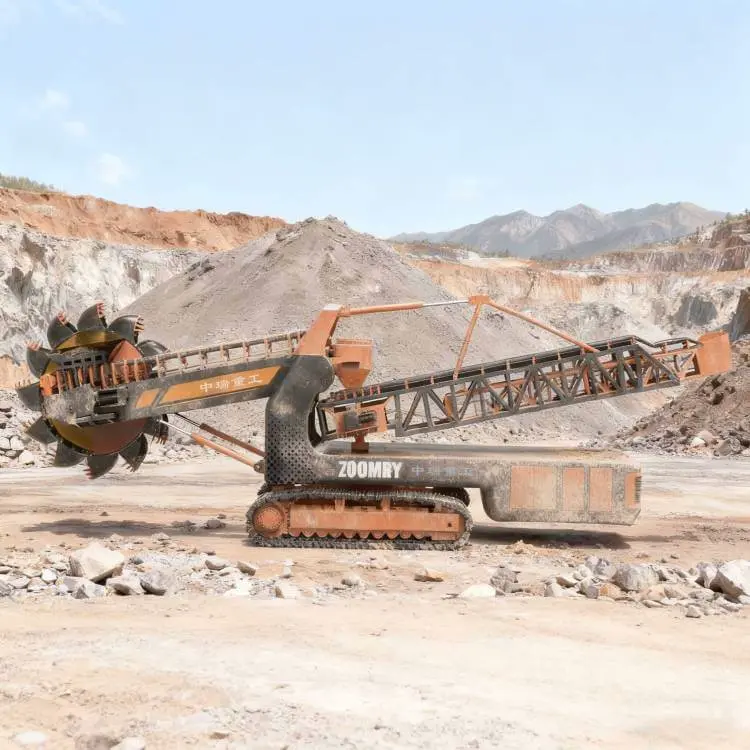

2. Tracked mobile stacker reclaimer — multi-scenario flexibility

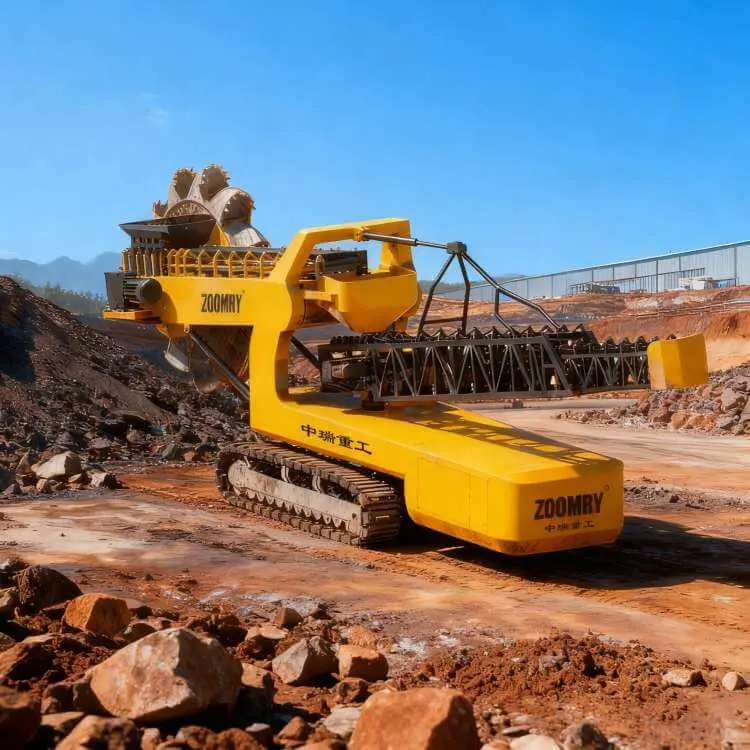

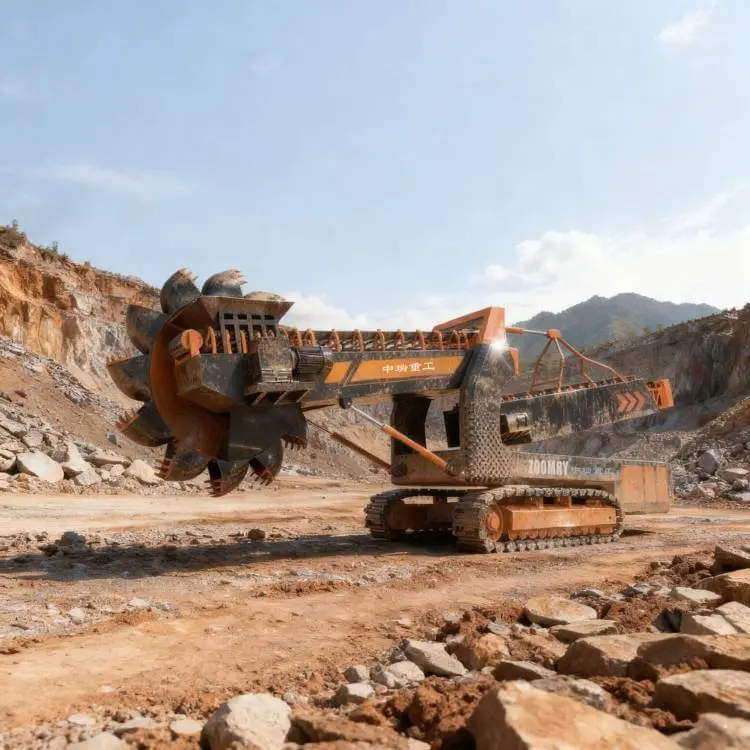

3. Bucket wheel reclaimer — precision reclaiming

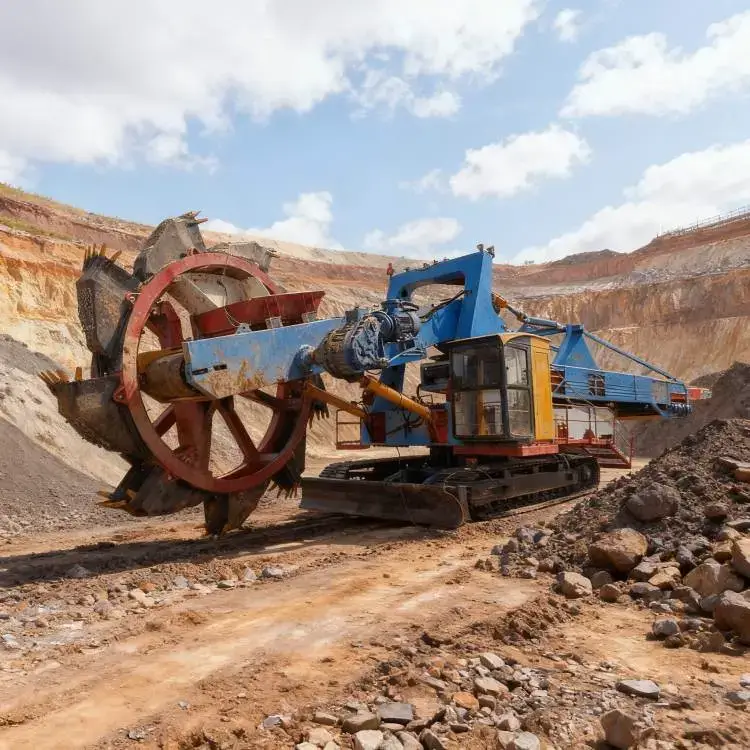

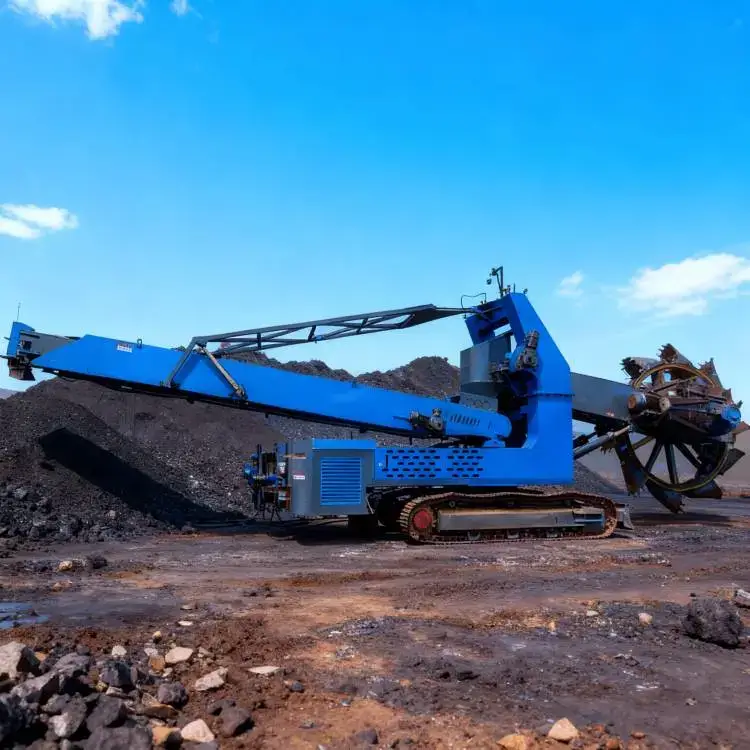

4. Bucket wheel excavator — continuous large-scale mining excavation

III. Key Specifications
Capacity: 500–3,000 m³/h | Buckets: 8–12 | Single bucket volume: 0.25–0.71 m³ | Power: 166–1,410 kW | Weight: 65–750 t | Slewing: ±65–360°

IV. Applications
1. Port bulk terminals — coal and ore handling
2. Thermal power plants — coal stockpile management
3. Steel plants — raw material storage and reclaiming
4. Grain reserve depots — bulk grain handling

V. Advantages
1. Integrated stacking and reclaiming — 3–6× loader efficiency
2. Broad coverage — boom lengths 20–50 m, 360° slewing
3. Automated operation — 1–2 operators required
4. 20–30% lower long-term cost than traditional equipment
5. CE and EAC certified for global markets

VI. Why Choose ZOOMRY
ZOOMRY bucket wheel equipment features in-house manufacturing of core components with over 20 years of structural optimization. Our machines deliver reliable performance in the harshest mining and port environments.
