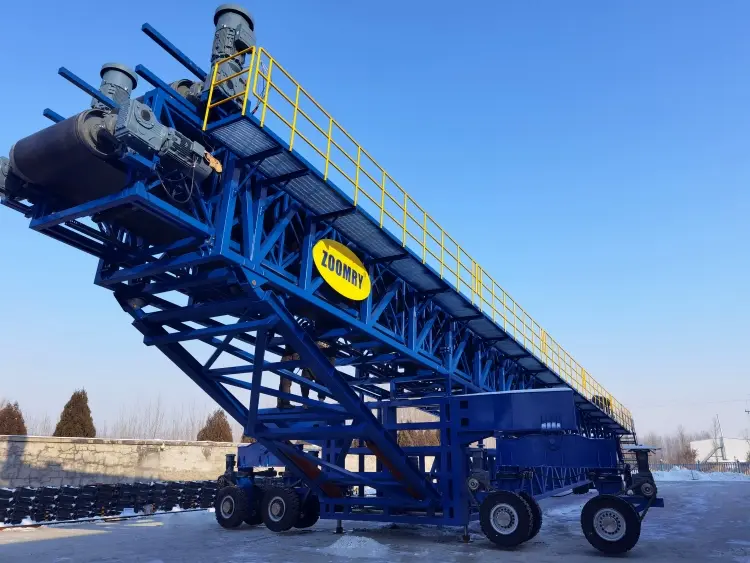

Conveyor Telescopic

As core equipment for mining, port, and construction industries, Zoomry's conveyor telescopic achieves engineering limits through modular design and intelligent control technology, delivering 20-meter stacking precision and 85-ton/hour processing capacity to redefine bulk material handling standards.

Application Scenarios

Performance Features

Ultra-Efficient Stacking System

• Dynamic amplitude modulation: Conveyor telescopic boom with a telescoping speed of 0.3\~1.2m/s and stepless adjustment adapts to materials with 25°\~50° angles of repose, achieving a 20m stacking height and a 45% improvement in yard utilization.
• Intelligent stacking algorithm: LiDAR real-time modeling generates optimal stacking trajectories (±10cm precision), preventing material segregation.

All-Terrain Mobility

• Hybrid mobility system: Conveyor telescopic combines hydraulic outriggers and heavy-duty tires (<80kPa ground pressure) for marsh/gravel terrain with ≤15° slopes.
• Rapid redeployment: Folded dimensions 12m×3.2m enable standard container transport, improving cross-site transfer efficiency by 70%.

Lifecycle Cost Advantage

• Energy efficiency: Conveyor telescopic advanced power systems reduce energy consumption by 35% vs conventional equipment.
• Maintenance optimization: Modular quick-disassembly design cuts routine maintenance time by 60%, extending critical component lifespan to 50,000 hours.

Comprehensive Safety System

• Triple protection:
• ±0.1° tilt monitoring
• Auto-lock at wind speeds >15m/s
• 30m millimeter-wave obstacle detection
• ISO 13849 PLd compliance with 100,000h MTBF certification.

Multi-Scenario Adaptability

• Material versatility: Handles 1.5\~2.5t/m³ density materials from aggregates to cement with >12kN/m² impact-resistant belts.
• Extreme environment operation: -30°C lubrication and ISO 12944 C5-M anti-corrosion structure ensure reliability in high-humidity/salt-spray environments.

Sustainable Engineering

• Conveyor telescopic achieves >85% recyclability with <75dB(A) noise emission (ISO 4871), aligning with green mining and carbon neutrality requirements.

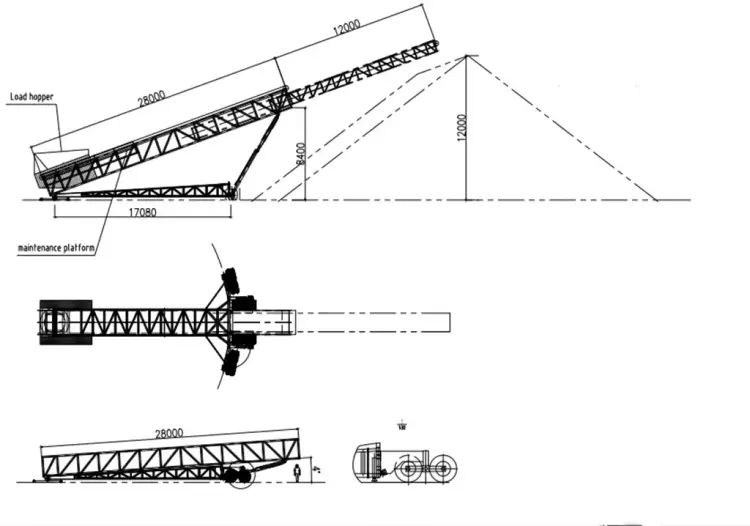

Structural Composition

The conveyor telescopic comprises:

• Hydraulic lifting system
• Front wheel traveling device
• Hydraulic outriggers
• Hydraulic power unit
• Base frame
• Electrical control cabinet
• Tail pulley rotation device
• Tow bar
• Maintenance platform
• Hopper
• Main conveyor belt
• Wire rope traction device
• Telescopic conveyor belt

Ensuring holistic performance and reliability.

Technical Specifications

Why Choose Zoomry?

1. Material Science Breakthrough Critical conveyor telescopic components exceed 50,000h service life (ISO 12100 fatigue certification).
2. Modular Design Philosophy On-site belt replacement completed in 2 hours (vs 8h conventional systems).
3. Global Service Network 12 regional service centers (North America/Middle East/Southeast Asia) guarantee 48h spare parts delivery.
4. EPC Project Synergy BIM model pre-delivery (LOD 400 precision) + OPC UA protocol standardization.
5. Green Manufacturing Commitment Equipment recyclability >85% compliant with EU ELV Directive.
