Hopper Feeder

ZOOMRY hopper feeders are front-end bulk material processing equipment designed for precise material receiving and controlled discharge to downstream conveyor systems. Available in static, tracked, heavy-duty, and biomass-specific configurations, our hopper feeders accept material from loaders, excavators, and grab cranes, then transfer it to conveyors, stackers, or ship loaders.

I. How Hopper Feeders Work
1. Feeding and receiving — wide-mouth hopper with optional inclined side walls, hardened steel liners, and material agitators
2. Conveying and regulation — EP multi-layer belts (light/medium) or chain plate conveyors (heavy-duty) with PLC control
3. Power options — diesel-hydraulic, hybrid, or pure electric
4. Mobility — tracked or wheeled chassis with hydraulic leveling

II. Configurations

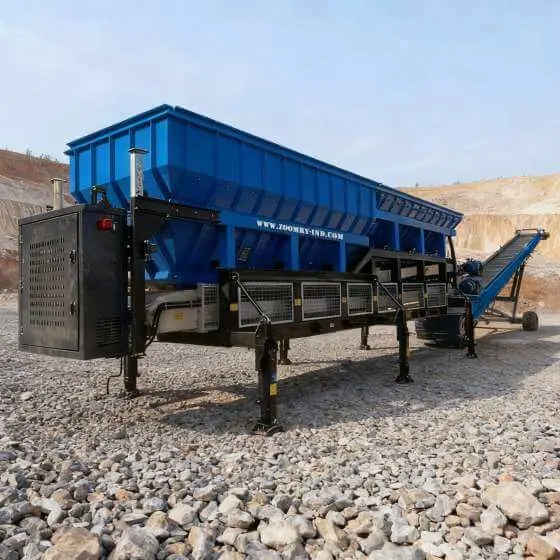

Model HF-ST: Static, 5–15 m³ hopper, 1000 TPH

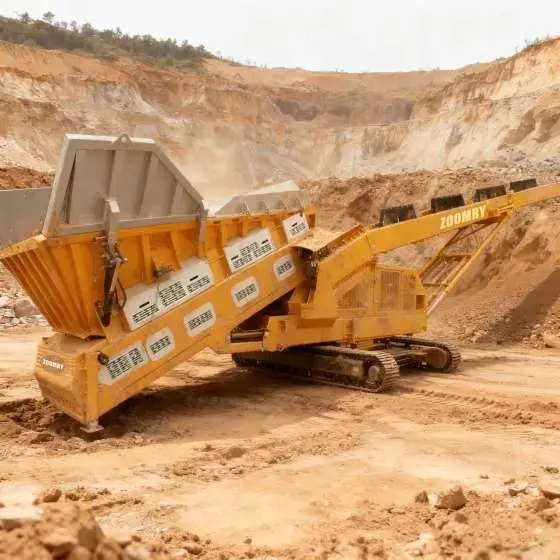

Model HF-LF: Low Feed, 7–12 m³ hopper, 800 TPH

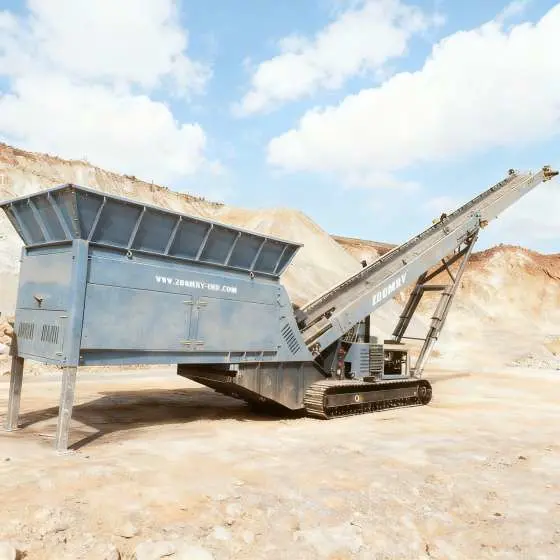

Model HF-TR: Tracked, 7–15 m³ hopper, 1000 TPH

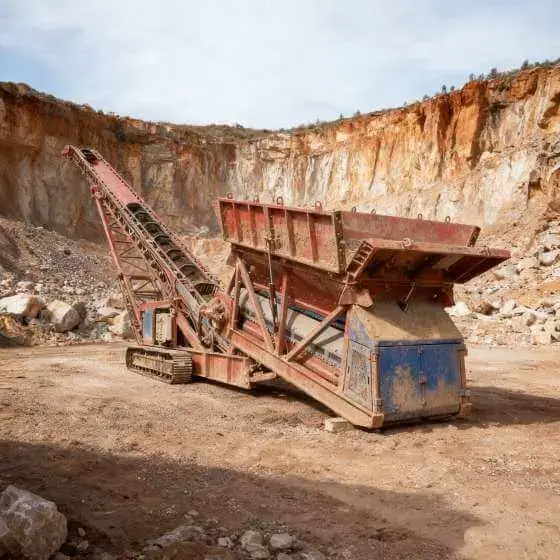

Model HF-HD: Heavy Duty, 12–24 m³ hopper, 3000 TPH
Model ZRHF-C3500: Flagship, 8.8 m³ hopper, 3500 TPH

III. Advantages
1. Reduces secondary handling — 40–60% higher efficiency than traditional methods
2. Multi-scenario adaptation — handles 0–250mm particle sizes
3. Low consumption — 30% longer wear part life, 20–25% lower energy
4. Global compliance — EU Stage V, IP65 electrical protection

IV. Applications
1. Mining stopes and transfer yards
2. Port bulk cargo loading areas
3. Biomass energy plants
4. Agricultural grain reserves
