Truck Unloading

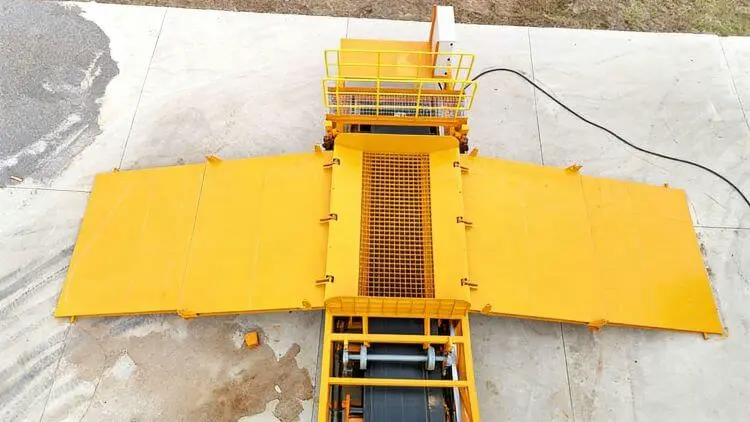

ZOOMRY Truck Unloading is a modular bulk material handling system designed for heavy-duty trucks, railcars, and vessels. It integrates high-precision weighing, intelligent flow distribution, and multidirectional conveying capabilities. With a continuous processing capacity of 300–2200 t/h, the system handles over 20 types of bulk materials including coal, ores, and grains. Patented dynamic alignment correction technology ensures 99.6% spillage-free operation.

Advantages of Truck Unloading

High-Efficiency Unloading

• Dual-stage buffer hopper design supports 6.2m maximum feed width, enabling full unloading of 60-ton trucks in ≤5 minutes per vehicle.
• Heavy-duty conveyor belt with EP400-EP800 wear-resistant layers, adjustable belt speed from 0.5–4.5 m/s.

Intelligent Control System

• Automatic material flow matching (±1.5% accuracy), synchronized with stackers, reclaimers, and ship loaders.
• 7-inch touchscreen displays real-time operational metrics: power consumption, cumulative throughput, etc.

All-Terrain Adaptability

• Wheeled chassis achieves 30 km/h road mobility with hydraulic self-leveling legs (±5° slope compensation).
• Optional crawler chassis with ground pressure ≤45 kPa for muddy or rocky terrain.

Technical Specifications

Core Technologies

Dynamic Alignment Correction

• Laser alignment sensors + hydraulic correction rollers limit belt deviation to ±20mm.
• Self-cleaning return idlers reduce spillage (≤0.3kg/m).

Modular Quick-Assembly Design

• Segmented structure enables ≤6-hour onsite assembly (vs. 24 hours for conventional systems).
• Maintenance access ≥800mm for motors/rollers, improving service efficiency by 50%.

Eco-Friendly Dust Suppression

• Fully enclosed chute + micron-level dry fog system controls dust concentration to <8mg/m³.
• Recyclable belt scrapers reduce material loss to 0.15%.

Typical Applications

Aggregate Handling

• Processes high-abrasion materials like basalt and granite.
• NM450 wear-resistant liners extend hopper lifespan to ≥8000 hours.
• Case Study: A 10-million-ton/year sand plant replaced manual unloading teams with Truck Unloadings, saving CN¥4.2 million annually.

Port Bulk Cargo Operations

• Compatible with 50,000–100,000 DWT vessels.
• Salt-spray-resistant coating (C4 anti-corrosion grade) ensures ≥10-year service life in marine environments.

Grain Logistics

• Food-grade stainless steel contact components (GB 4806.9 compliant).
• Integrated dynamic weighing scale (0.2% accuracy) syncs with warehouse management systems.

Service & Warranty

• Complimentary 3D layout simulation + throughput verification reports.
• 24/7 remote diagnostics + global spare parts network.
• 5-year/20,000-hour warranty on main structures (2× industry standard).
• Belt vulcanization services.

Certifications

• CE Mark (EN 620:2011) + ISO 21873 construction machinery standard.
• Explosion-proof versions comply with ATEX 2014/34/EU (II 2G Ex db IIC T4 Gb).

With 20+ years of expertise in bulk material handling, ZOOMRY holds hundreds of national patents and serves 35+ countries globally. Over 220 Truck Unloading units have been delivered, achieving 98.3% operational availability and recognized as AAA Credit Enterprise by China Heavy Machinery Association.
